How to Build Serverless IoT Architecture on AWS

As the Internet of Things (IoT) continues to grow, businesses face unique challenges in handling vast data streams from connected devices. A scalable and serverless architecture not only addresses these challenges but also offers cost-efficiency, high availability, and robust security.

This article explores building a comprehensive serverless IoT architecture using AWS services, integrated with QuestDB and CubeJS for real-time analytics and data visualization. Whether you’re a beginner or an intermediate developer, this guide will help you understand the critical components of a modern IoT solution.

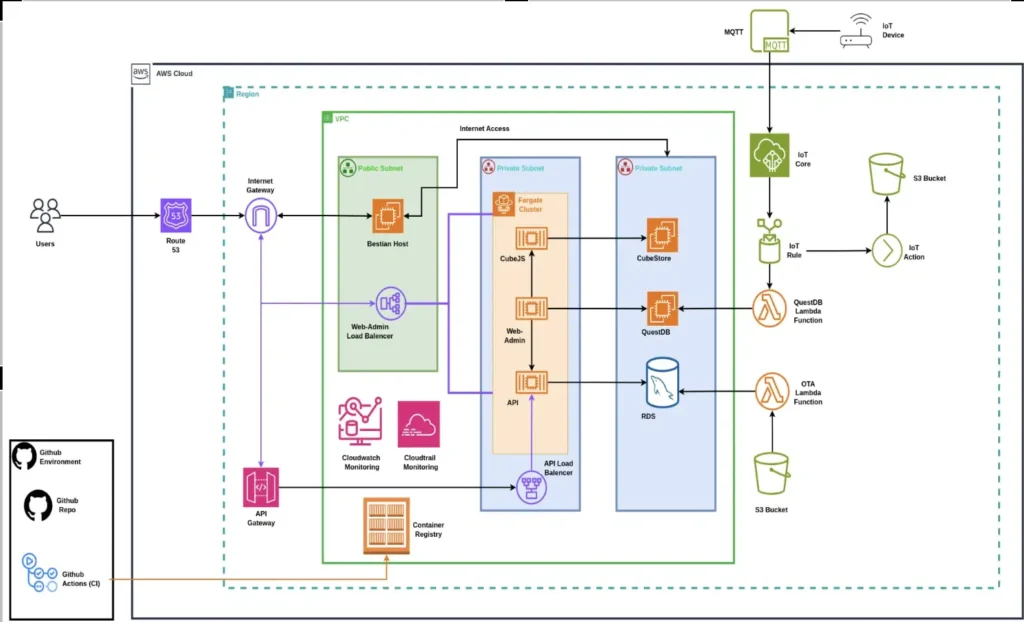

Project Flow: Understanding the Big Picture

IoT applications generate continuous data streams that need to be processed, stored, and visualized in real-time. The proposed architecture is designed to manage the entire data lifecycle, ensuring scalability, security, and actionable insights. Here’s how the data flows through the system:

1. Data Ingestion: IoT devices communicate with AWS IoT Core using the MQTT protocol to send data streams. IoT Core routes this data to various downstream services using rules.
2. Data Processing: Lambda functions process the ingested data. For instance, some data is sent to QuestDB for time-series storage, while other data is temporarily stored in Amazon S3 for backup and analytics.
3. Analytics and Visualization: QuestDB handles high-performance ingestion of time-series data, which CubeJS uses to generate real-time insights and dashboards.
4. Firmware Management: Over-the-air (OTA) updates are facilitated by uploading firmware files to S3, processed by a Lambda function, and stored in Amazon RDS for metadata management.
5. User Interaction: An API Gateway connects users to the system through a web-admin UI hosted on ECS (Fargate), allowing them to view analytics, manage firmware updates, and interact with the data.
6. Monitoring and Security: CloudWatch and CloudTrail ensure the system’s health and security, with real-time monitoring and auditing capabilities.

AWS Core Services and their Role in the Architecture

AWS IoT Core: The Communication Backbone

AWS IoT Core serves as the entry point for IoT devices, enabling secure and reliable communication. Using MQTT ensures lightweight and efficient data transmission, which is crucial for low-power IoT devices. The IoT Rules Engine adds flexibility by routing data to downstream services, making real-time processing seamless.

AWS Lambda: Serverless Processing Power

Lambda functions are pivotal in processing incoming data streams. One Lambda function processes and routes data to QuestDB for time-series storage, ensuring it is ready for analytics. Another handles firmware updates by processing uploaded files and updating metadata in RDS. This event-driven computing model eliminates the need for managing servers, allowing the architecture to scale dynamically.

Amazon S3: Reliable and Scalable Storage

S3 stores IoT data and firmware files securely. Its durability ensures that data is not lost, while lifecycle policies optimize storage costs. By serving as a central repository, S3 simplifies data accessibility for analytics and backup.

Amazon RDS: Metadata Management

RDS is used to store firmware versioning and device-specific configurations. Its relational database model ensures fast and reliable access to structured metadata, critical for managing updates and maintaining device consistency.

Amazon ECS (Fargate): Hosting User Interfaces

The web-admin interface and APIs are hosted on ECS with Fargate, enabling scalability and containerized deployment. This setup ensures the system can handle variable user traffic efficiently while maintaining low operational overhead.

QuestDB: High-Performance Time-Series Database

QuestDB is a critical third-party tool for managing time-series data. It provides low-latency ingestion and querying capabilities, ensuring real-time analytics for IoT data streams. This makes it an ideal choice for handling the high-volume data generated by IoT devices.

CubeJS: Real-Time Analytics and Dashboards

CubeJS processes and visualizes data from QuestDB. It simplifies creating dashboards and analytics by aggregating and processing data in real-time. With its ability to fetch and process data rapidly, CubeJS ensures users have actionable insights at their fingertips.

Security Features: Protecting the System End-to-End

Security is integral to the architecture, ensuring that data and services are protected at every level. Key measures include:

1. VPC and Subnet Isolation: Critical services like ECS, RDS, and QuestDB are deployed in private subnets, inaccessible from the public internet, while public-facing services like API Gateway are hosted in public subnets.
2. Bastion Host for Secure Access: A bastion host provides controlled access to private subnets, ensuring administrative activities are secure and tightly monitored.
3. Fine-Grained IAM Policies: Role-based access control ensures that only authorized entities can access sensitive resources.
4. Encryption: Data in transit is encrypted using SSL/TLS, and data at rest is encrypted in S3 and RDS, protecting it from unauthorized access.
5. Monitoring and Auditing: CloudWatch provides real-time monitoring of resources, while CloudTrail records and audits API calls, ensuring traceability and compliance.

Benefits of the Architecture

This serverless architecture offers a range of benefits tailored to IoT use cases:

1. Scalability: Serverless components like Lambda and S3 scale dynamically, handling varying loads without manual intervention. ECS with Fargate adapts to fluctuating user traffic seamlessly.
2. Real-Time Analytics: QuestDB and CubeJS enable fast data processing and visualization, providing actionable insights in real time.
3. Cost Efficiency: The pay-as-you-go model reduces costs by charging only for used resources. Optimizations like lifecycle policies further minimize expenses.
4. Enhanced Security: Private subnets, encryption, and fine-grained access controls ensure a robust security posture.
5. Flexibility: The modular design allows independent scaling and updates, ensuring long-term adaptability.

Step-by-Step Implementation of Serverless IoT Architecture on AWS

Implementing this architecture involves several steps, each building on the other to ensure a robust and scalable system:

1. Setting Up IoT Core: Begin by configuring MQTT topics and IoT Rules to route data to Lambda and S3. This ensures smooth data ingestion and initial processing.
2. Deploying Lambda Functions: Write Lambda functions to process IoT data and firmware files. Assign IAM roles with the least privilege necessary to enhance security.
3. Configuring QuestDB and CubeJS: Set up QuestDB to store IoT data efficiently. Deploy CubeJS and integrate it with QuestDB to enable real-time analytics and dashboards.
4. Setting Up S3: Create S3 buckets for storing IoT data and firmware files. Configure lifecycle policies to manage storage costs effectively.
5. Deploying RDS: Use RDS for storing firmware metadata. Design schemas for efficient retrieval and updating of device configurations.
6. Hosting on ECS (Fargate): Deploy APIs and web-admin interfaces on ECS. Use a load balancer to manage user traffic securely.
7. Implementing Security Measures: Deploy a bastion host for secure access, apply security groups, and enable encryption across all data layers.
8. Integrating Monitoring and Auditing: Use CloudWatch for real-time metrics and alarms. Enable CloudTrail to audit resource usage and API calls.
9. Setting Up CI/CD: Use GitHub Actions to automate deployments, ensuring quick and reliable updates to Lambda functions and ECS containers.

Challenges and Best Practices

Every architecture comes with challenges, and addressing them proactively is essential:

1. Handling High Data Ingestion Rates: High-volume IoT data can overwhelm the system. Using QuestDB ensures efficient handling of time-series data, while CubeJS enables rapid processing for analytics.
2. Securing IoT Devices: IoT devices are vulnerable to unauthorized access. Implementing mutual TLS and authentication mechanisms in IoT Core minimizes this risk.
3. Balancing Cost and Performance: Overuse of serverless services can lead to unexpected costs. Regularly monitoring resource usage with CloudWatch and optimizing workflows helps maintain a balance.
4. Ensuring Data Consistency: Real-time processing can cause inconsistencies. Incorporating idempotent operations and retries in Lambda functions ensures data accuracy and reliability.

Conclusion

This serverless IoT architecture on AWS combines scalability, real-time processing, and robust security to meet the demands of modern IoT applications. By integrating AWS services with tools like QuestDB and CubeJS, businesses can efficiently process and visualize large volumes of data.

The modular design, coupled with CI/CD automation, ensures long-term adaptability and rapid iteration. Whether you’re starting from scratch or optimizing an existing setup, this architecture provides a solid foundation for innovation in the IoT space.
